MERITS OF FRC COVERS/FRAMES OVER CI COVERS/FRAMES

CHARACTERISTICS	CI COVERS	FRC COVERS
DURABILITY	BRITTLE	HIGHLY DURABLE
STRENGTH	EQUAL	EQUAL
SUSCEPTIBILITY TO THEFTS	HIGH	NIL
SCRAP VALUE	HIGH	VERY LOW
COST	100%	40%

Shape and Size will be altered to suit the requirement in case of bulk & regular orders.

Product Range :

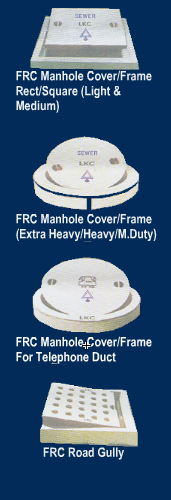

FRC Manhole covers and frames
FRC Inspection Covers and Frames
FRC Drain Covers
FRC Duct Covers

Ferro Cement Water Tanks
Ferro Cement Compound Wall
Bucket Pump Pedastal
FRC Heavy Duty Flooring

FRC MANHOLE COVERS & FRAMES

Description	Size of opening (feet)	Quality	Duty	Overall Sie (inches)	Thickness (mm)		Weight (kg)
Description	Size of opening (feet)	Quality	Duty	Overall Sie (inches)	Cover	Frame	Cover	Frame
Chamber Cover	1 x 1	LIGHT	LD	14 x 14	25	60	5	10
	1 x 1	MEDIUM	MD	14 x 14	40	80	9	11
	1 ½	LIGHT	LD	24 x 24	25	60	19	22
		MEDIUM	MD	24 x 24	40	80	19	29
		HEAVY	HD	27 x 27	85	130	70	62
	1 ¾	LIGHT	LD	27 x 27	25	50	27	25
	2 x 2	LIGHT	LD	30 x 30	25	60	28	30
		MEDIUM	MD	32 x 32	50	100	55	54
		HEAVY	HD	34 x 34	90	145	105	86
	2 x 1 ½	MEDIUM	MD	33 x 24	50	100	47	55
Sump Valve Cover	1 ¾ x 1 ¾	LIGHT	LD	27 x 27	25	50	30	27
	2 x 2	LIGHT	LD	30 x 30	25	60	20	20
	2 x 2	MEDIUM	MD	33 x 33	50	100	54	57
Road Gully	1 ½ x 1 ½	LIGHT	LD	24 x 24	25	60	14	18
	1 ½ x 1 ½	MEDIUM	MD	24 x 24	40	80	18	29
	1 ¾ x 1 ¾	LIGHT	LD	27 x 27	25	50	19	24
	2 x 2	MEDIUM	MD	32 x 32	50	100	50	54
	2 x 1	HEAVY	HD	30 x 18	70	120	15	24
Road Gully (Cover only)	2 x 1	HEAVY	HD	30 x 18	70	-	15	-

Description	Size of Opening		Quality	Duty	Overall Size		Thickness (mm)		Weight (kg)
Description	feet	mm			inches	mm	Cover	Frame	Cover	Frame
MAN HOLE COVER	1 ½ Dia	450	MEDIUM	MD	27 Dia	685	70	122	44	45
	1 ½ Dia	450	EXTRA HEAVY	EHD	28 Dia	710	90	150	75	58
	1 10 ½ Dia	560	MEDIUM	MD	34 Dia	860	70	120	55	67
	1 10 ½ Dia	560	HEAVY	HD	34 Dia	860	90	165	95	106
	1 10 ½ Dia	560	EXTRA HEAVY	EHD	34 Dia	860	100	175	102	111
	2 Dia	600	MEDIUM	MD	36 Dia	900	70	120	60	75
	2 Dia	600	HEAVY	HD	36 Dia	900	90	165	96	114
	2 Dia	600	EXTRA HEAVY	EHD	36 Dia	900	100	175	118	110
METRO DESIGN	2 Dia	600	HEAVY	HD	36 Dia	900	90	150	96	92
STORM WATER DRAIN	2 Dia	600	MEDIUM	MD	36 Dia	900	70	120	60	75
PLASTIC ENCAPSULATED STEPS	BIG	-	HEAVY	HD	10 ½ x 6 ¾	265 x 170	-	-	-	-
PLASTIC ENCAPSULATED STEPS	SMALL	-	MEDIUM	MD	8 ½ x 4 ½	215 X 115	-	-	-	-

L.D.	Light Duty	Load withstanding Capacity	2.50 MT	Foot paths and Two wheelers
M.D.	Medium Duty	Load withstanding Capacity	10.00 MT	Light four wheelers - cars, vans etc.,
H.D.	Heavy Duty	Load withstanding Capacity	20.00 MT	Heavy Vehiclers
E.H.D.	Extra Heavy Duty	Load withstanding Capacity	35.00 MT	Heavy Traffic roads
